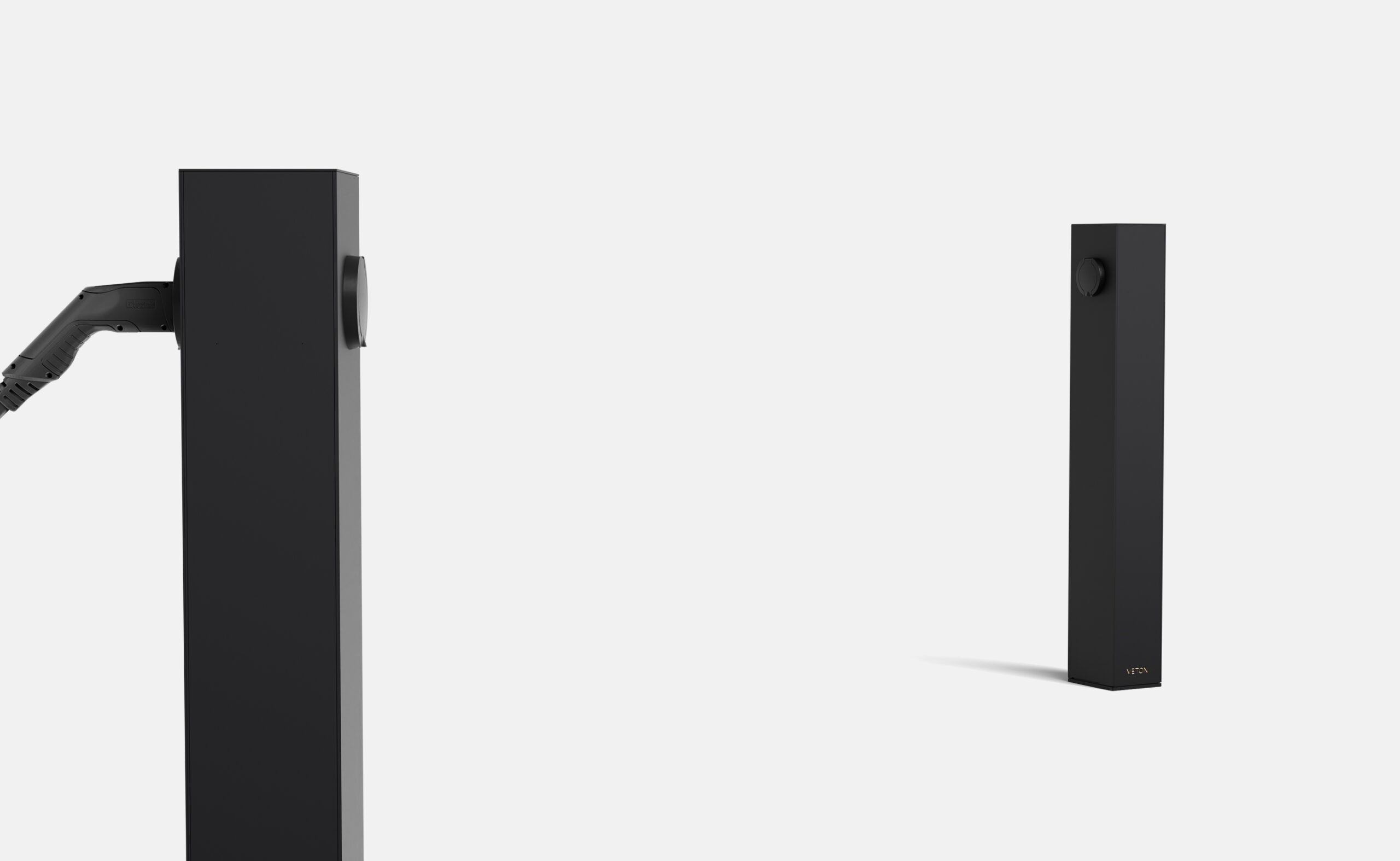

Veton Two (base) is designed for businesses and parking facilities. A double 22 kW EV charger combining simplicity, capacity, and reliability. With its discreet steel housing and dual charging power, Two (base) offers businesses a no-nonsense solution that stands for robustness and reliability.

What is included with Two (base) and what still needs to be provided?

Per Two (base), in addition to the housing and charging components described above, the following are supplied as standard: charging ports (x2), an integrated RFID reader, a distribution block for connecting power and signal cables to the charging ports and RFID reader, ensuring a clear and simple installation, Type A residual current circuit breaker (x2). What still needs to be provided? Depending on the type of charging installation, the following must be supplied: 5G 6mm² power cables (x2), CAT 7 SFTP data cable (x2) with 16 conductors in total.

Two (base)

Name: Two (base)
Brand: Veton

Overview Specifications Configure

Made for business.

With its discreet steel housing and dual charging power, Two (base) offers businesses a no-nonsense solution that stands for robustness and reliability.

No-nonsense appearance, double capacity.

Two (base) embodies robustness and professional simplicity. With two sockets delivering up to 22 kW each, housed in a solid steel casing free from unnecessary frills, it is purpose-built for business environments and parking facilities where reliability and capacity matter most.

Customise my charger

A splash of color.

Available in four colors: Imperial Black, Cotton White, Midnight Blue and Medusa Green.

Pick a color

Imperial Black(RAL 9005)

Natural elegance.

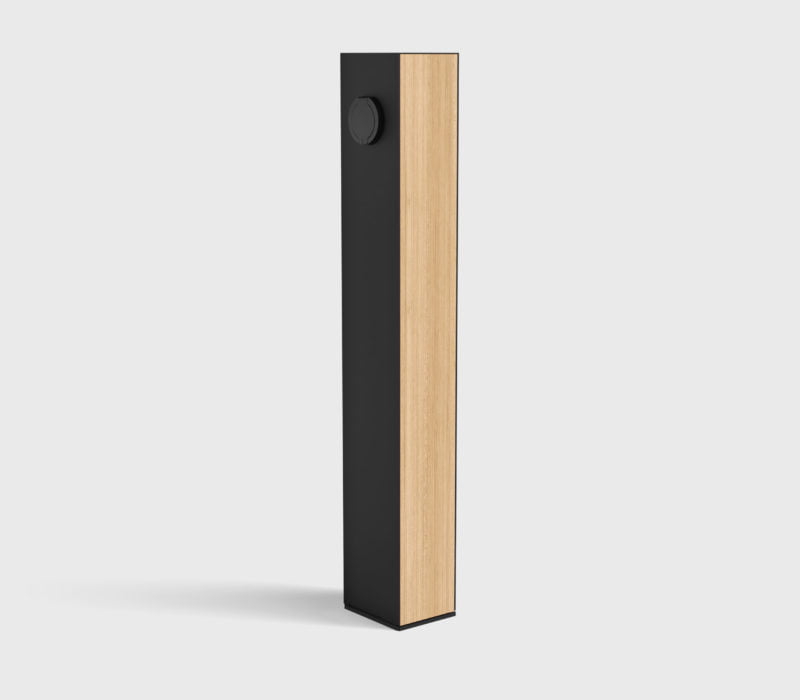

Add a touch of luxury: choose teak, natural stone or marble for the front plate and enrich the elegant design with natural accents.

Pick a material

Connectivity.

RFID is included as standard. Thanks to OCPP compatibility and integration with home automation and EMS platforms, Two (base) is highly versatile and ready for professional management and billing (via EV charging platforms).

Smart control.

Charge intelligently with Two (base): integrate with solar panels, batteries, dynamic load balancing and tariffs. Fully compatible with KNX, Crestron, Loxone, Qbus and other EMS via Modbus, MQTT or REST API.

More information

Concrete base.

The concrete base simplifies installation significantly with integrated mounting points and cable ducts.

Your brand identity.

Personalize Two (base) with a laser-cut logo in the front plate, subtly highlighted by LED. Unique, stylish and instantly recognizable.

Customise my charger

How we keep fit.

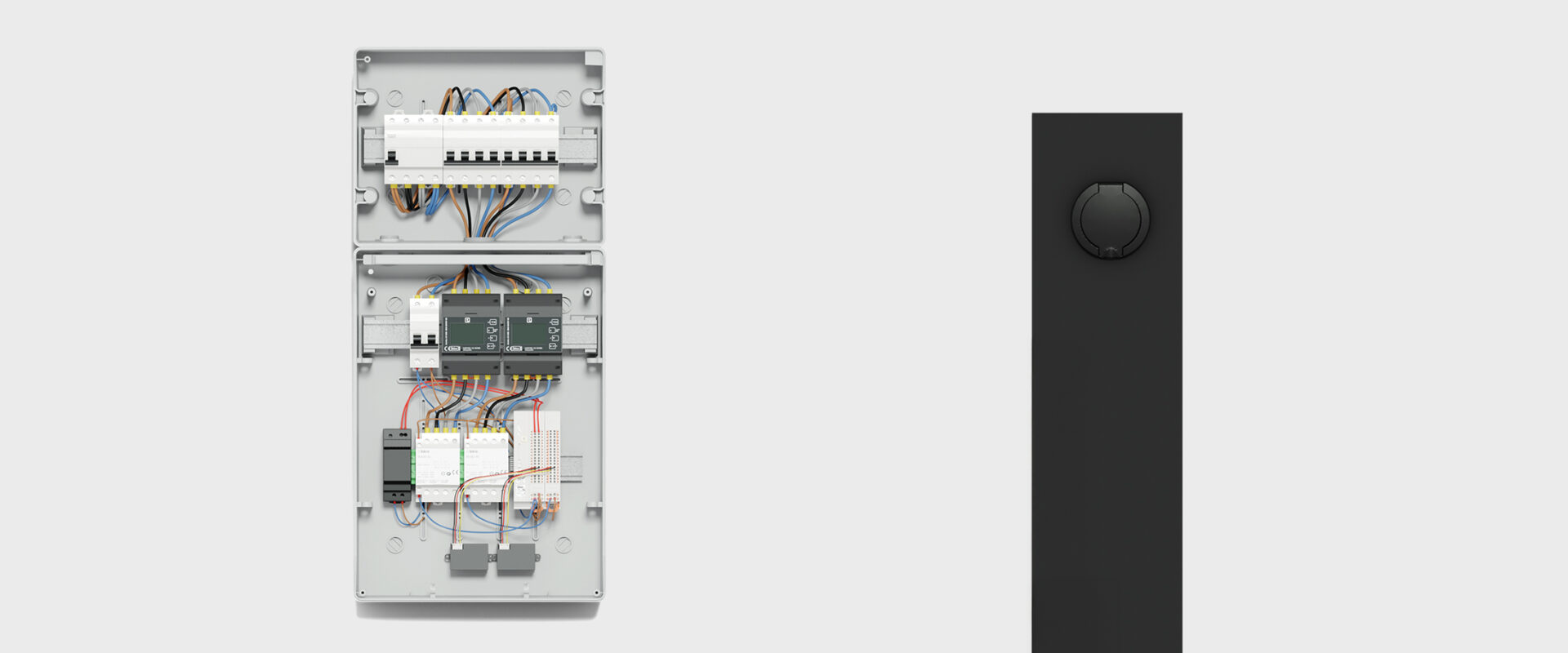

Veton® uses a separate cabinet that houses the charging electronics and is installed indoors. Per charging point, the cabinet is equipped as standard with: a residual current circuit breaker, MID-certified meter, 6mA DC residual current monitoring module, power supply, Phoenix Contact CHARX controller, contactor, and grounding terminal. The cabinet is supplied in the size 600 x 315 x 155 mm (for a double charging point).

This setup makes the charging stations more compact and aesthetically refined, while the electronics are optimally protected against heat, cold, water, and sunlight. The result: durable reliability and an extended lifespan.

For integration with energy management systems or OCPP platforms, the cabinet is simply connected to the internet via a UTP cable.

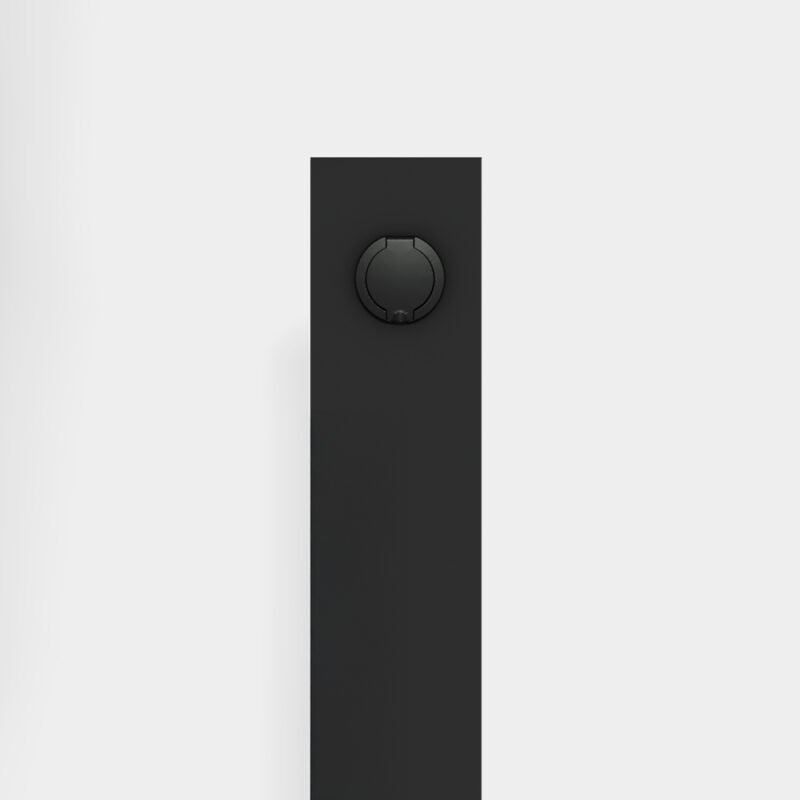

So what's included?

Per Two (base), in addition to the housing and charging components described above, the following are supplied as standard:

charging ports (x2),
an integrated RFID reader,
a distribution block for connecting power and signal cables to the charging ports and RFID reader, ensuring a clear and simple installation,
Type A residual current circuit breaker (x2).

What still needs to be provided?

Depending on the type of charging installation, the following must be supplied:

5G 6mm² power cables (x2),
CAT 7 SFTP data cable (x2) with 16 conductors in total.

Specifications.

Connectivity

Ethernet, MQTT, Modbus TCP, Modbus RTU, REST API

Optional 4G/2G connection

Charging specifications

Mode 3 / 3,7 - 22 kW

3 x 400V+N / 16A - 32A per fase

Overload protection

Dynamic load balancing

EV charging platforms

Connect with provider of choice

via OCPP

Energy monitoring

MID certified energy monitors

Calculation of transaction costs

Residual Current Detection

Built-in residual current protection

6mA DC / 30mA AC

Dimensions

1152 x 154 x 186 mm

H x W x D

Component housing

Integrated in utility closet

600 x 315 x 155 mm

Cable

5G 6mm2 + 18 x 0.34mm2

(E)XVB + SFTP
