Wall Plus

Overview Specifications Configure

Great and compact alike.

A design that builds on the timeless aesthetics of One and Two.

Plug or socket.

Choose between a built-in cable and a compact socket charging solution. Both compatible with EU electric vehicles (Type 2).

Pick a type

A splash of color.

Available in four colors: Imperial Black, Cotton White, Midnight Blue and Medusa Green.

Pick a color

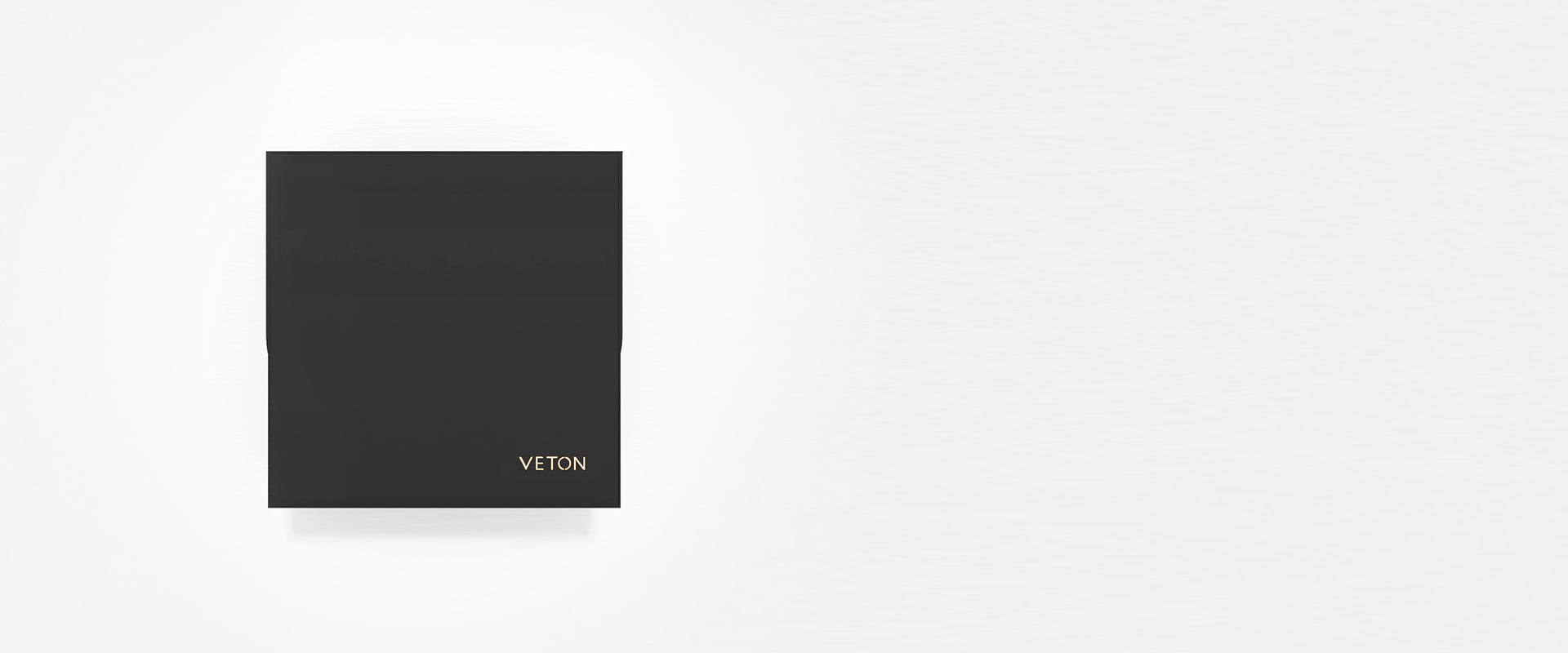

Imperial Black(RAL 9005)

Natural elegance.

Add a touch of luxury: choose teak, natural stone or marble for the front plate and enrich the elegant design with natural accents.

Pick a material

Connectivity.

RFID is included as standard. Thanks to OCPP compatibility and integration with home automation and EMS platforms, Wall Plus is highly versatile and ready for professional management and billing (via EV charging platforms).

Smart control.

Charge intelligently with Wall Plus: integrate with solar panels, batteries, dynamic load balancing and tariffs. Fully compatible with KNX, Crestron, Loxone, Qbus and other EMS via Modbus, MQTT or REST API.

More information

Brand it your way.

Personalize Wall Plus with a laser-cut logo in the front plate, subtly highlighted by LED. Unique, stylish and instantly recognizable.

Customize my charger

How we keep fit.

Veton® uses a separate cabinet that houses the charging electronics and is installed indoors. Per charging point, the cabinet is equipped as standard with: a residual current circuit breaker, MID-certified meter, 6mA DC residual current monitoring module, power supply, Phoenix Contact CHARX controller, contactor, and grounding terminal. The cabinet is supplied in the size 450 × 315 × 155 mm (for a single charging point).

This setup makes the charging stations more compact and aesthetically refined, while the electronics are optimally protected against heat, cold, water, and sunlight. The result: durable reliability and an extended lifespan.

For integration with energy management systems or OCPP platforms, the cabinet is simply connected to the internet via a UTP cable.

So what's included?

Per Wall Plus, in addition to the housing and charging components described above, the following are supplied as standard:
  • a charging cable or charging port (depending on choice of charging outlet),
  • an integrated RFID reader,
  • a distribution block for connecting power and signal cables to the charging cable/port and RFID reader, ensuring a clear and simple installation,
  • a Type A residual current circuit breaker.

What still needs to be provided?

Depending on the type of charging installation, the following must be supplied:
  • 5G 4mm² or 6mm² power cable,
  • CAT 7 SFTP data cable(s) with 7 to 12 conductors.

Specifications.

Connectivity

Ethernet, MQTT, Modbus TCP/RTU, REST API
Optional 4G/2G connection

Charging specifications

Mode 3 / 3,7 - 13,5 kW (plug) or 22 kW (socket)
3 x 400V+N / 16A - 20A or 32A per phase

Overload protection

Dynamic load balancing

EV charging platforms

Connect with provider of choice
via OCPP

Energy monitoring (optional)

MID gecertificeerde energiemonitor
Calculation of transaction costs

Residual Current Device

Built-in residual current protection
6mA DC / 30mA AC

Dimensions

350 x 350 x 150 mm
H x W x D

Component housing

Built-in utility closet
450 x 315 x 155 mm

Cable

5G 4/6mm2 + 7 to 12 x 0.34mm2
Between components and charger
